Introduction to privacy enhancing technologies (PET)
Last updated on 2024-06-04 | Edit this page
Estimated time: 12 minutes
Overview
Questions
- TODO
Objectives
- Understand PET, FL, MPC, homomorphic encryption, differential privacy
- Understand how different PET techniques relate
- Understand scenarios where PET could be applied
- Understand horizontal vs vertical partitioning
- Decompose a simple analysis in a federated way
- Understand that there is paperwork to be done (DPIA etc.)
Problem statement
The amount of data being generated nowadays is absolutely mind-boggling. This data can be a valuable resource for researchers. However, personal data should be handled with great care and responsibility because of its sensitive nature. This is why there are privacy regulations in place like GDPR to prohibit easy access to this wealth of data.
However, often researchers are not interested in the personal records that make up the data, but rather in the insights derived from it. This raises an intriguing question: Can we unlock these valuable insights in a manner that upholds and respects privacy standards?

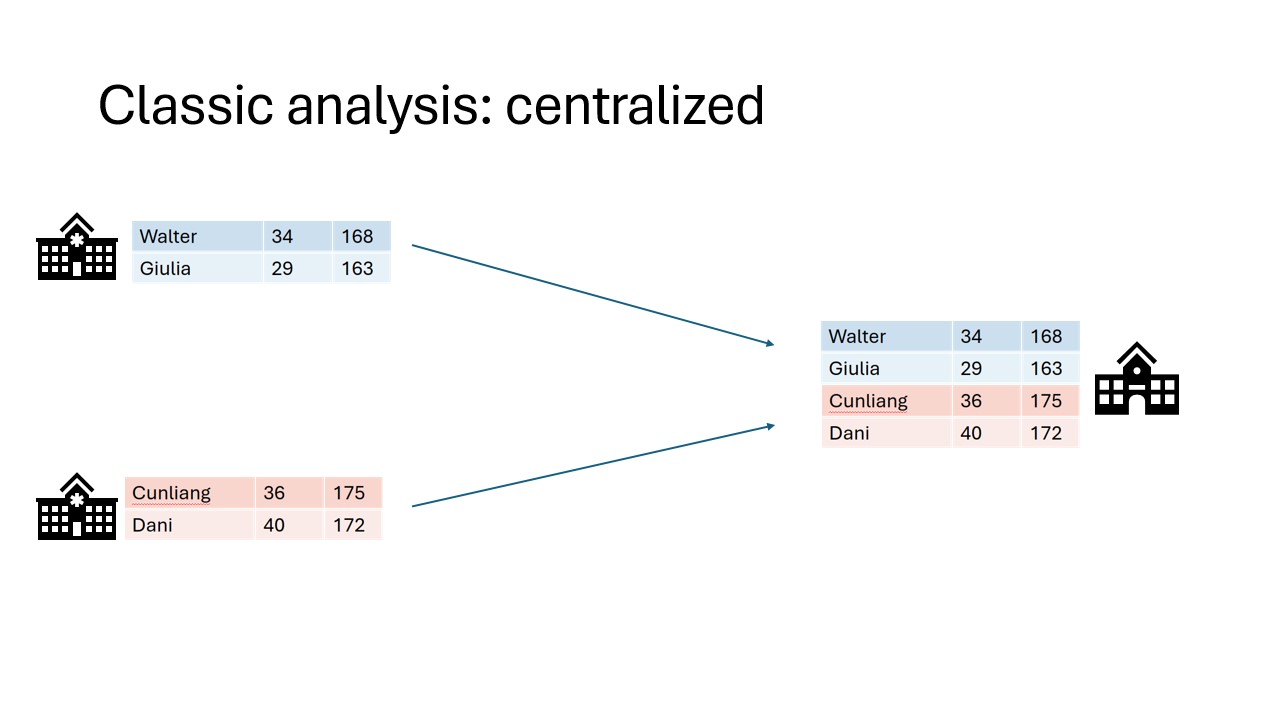

In classic data analysis, all data is copied over into a single place. This makes it very easy to use conventional data analysis software and tools to gain insights.
Unfortunately this way of working does not respect the privacy of the people contained within the dataset. All their personal details end up at another party.
You might think of multiple issues. Some examples:
- The original data owner loses control of the data
- Results in multiple versions of the data
- What to do when the data needs to be updated?
- If there was consent in the first place, how can you retract consent?
Data anonymization and pseudonymization

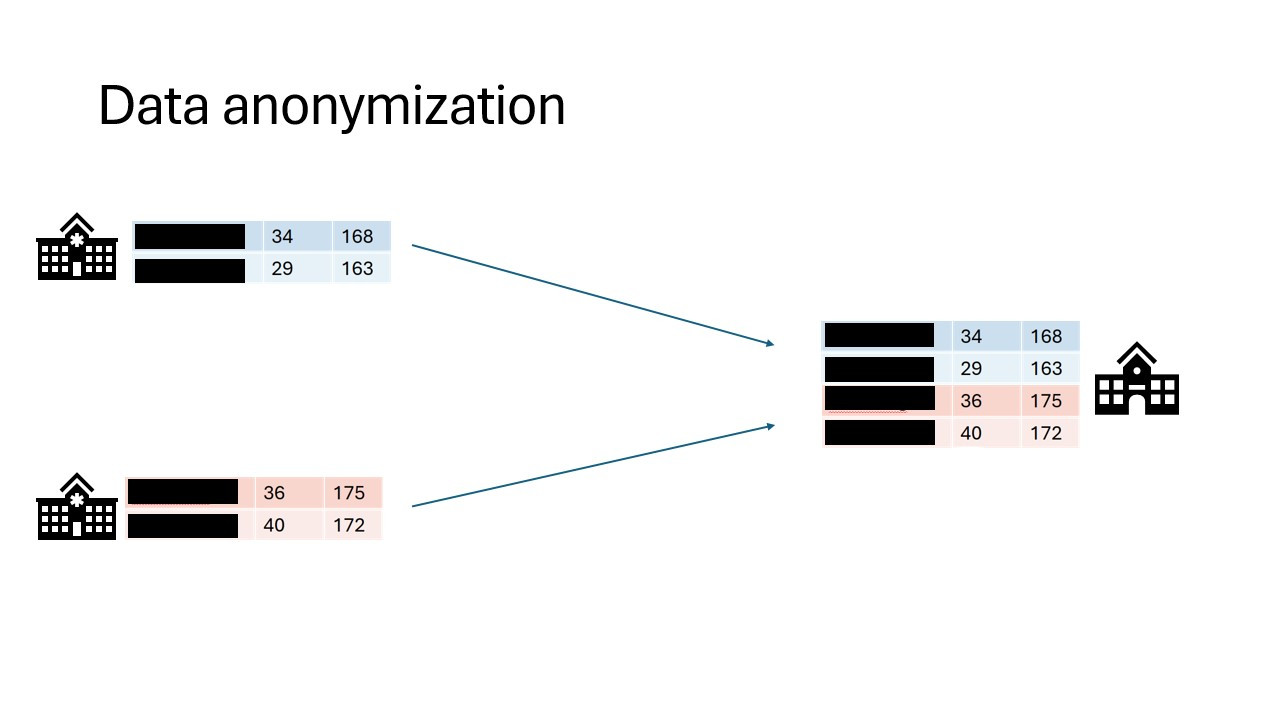

The first step in the process is often data anonymization. Personal identifiable information will in this case be removed so that individuals stay anonymous. Data pseudonimization is a similar process, but in this case, the records will be assigned an id that will make it possible to link individuals across datasets.
While data anonymization and pseudonymization are often a good first step, there is no guarantee that the data will never be reidentified. A famous example of reidentification is the story of the Netflix prize. The Netflix prize was an open competition to build the best recommender system to predict user ratings for films based on previous ratings. The data was anonymized, but in 2007 two researchers from The University of Texas at Austin were able to identify a large number of users by matching the dataset with film ratings on the Internet Movie Database (IMDB).
Federated data analysis
There are different ways in which privacy risks can be mitigated. We will focus on the idea of federated analysis. In a federated setting, the data with the data owner, who keeps full control over it. In this case, it is not the data that travels, but the analysis itself. The system sends a query or instruction to the data and only the results will get back to the user. The results are often akin to a form of aggregation of the data. This can be in the shape of traditional statistics like the mean, or it can be more intricate like a machine learning model.
Aggregating the data does not ensure complete protection of person-level information, but it certainly makes it less likely that this will happen.
TODO: Example of data leakage in simple aggregated case
Federated learning
The term federated learning was introduced in 2016 by researchers at Google (McMahan et al.) and refers to a “loose federation of participating devices (which we refer to as clients) which are coordinated by a central server.” In traditional federated learning, the clients train machine learning models, and only the updates of the models are sent back to the central server. The central server combines the updates from all the individual clients into one final machine learning model.

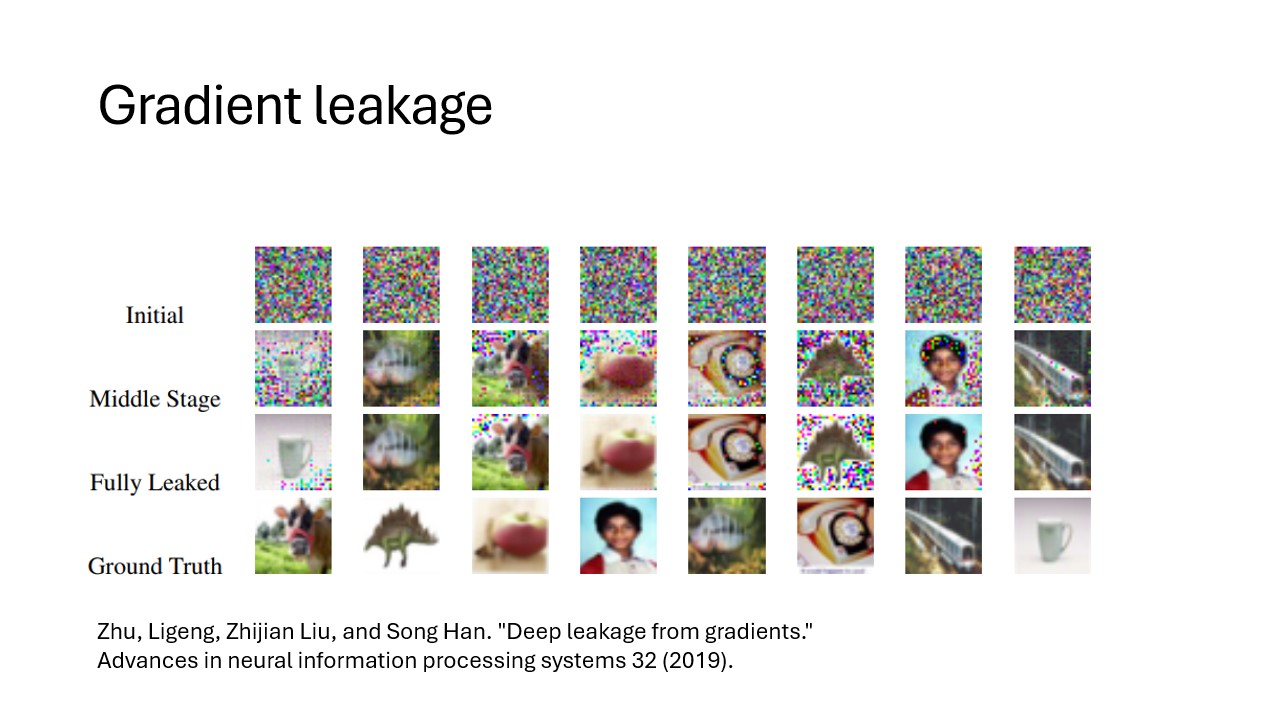

There are caveats to using this type of data analysis though. Although the data transmitted from the clients to the server are an aggregation of the raw data, researchers have found a way to use this data to reconstruct the original data. This vulnerability is called gradient leakage.
Secure Multiparty Computation
There are different solutions to prevent the reconstruction of raw
data. One solution is to make sure that no party other than the data
owner is actually able to see the intermediate data. One branch of
techniques that can be used for this is Secure Multiparty Computation
(MPC). With MPC,
computations are performed collaboratively by multiple parties. Data is
encrypted in such a way that other parties cannot see the original
values, but values of multiple parties can still be combined (
e.g. added or multiplied). A classic technique from the field of MPC is
secret sharing. With this technique data is encrypted, after which
pieces of the encryption are sent to the other parties. No single party
will be able to reconstruct the original value. Only when all parties
work together, the original value can be retrieved.
When combining multiple values using secret sharing, this will result in the parties owning new puzzle pieces that when put together will reveal the result of the computation.
Secret sharing, an example
Mees, Sara and Noor want to know how much they weigh in total. Mees weighs 43 kg, Sara weighs 39, Noor weighs 45. They create secret shares for their weights that they give to their peers.
| Mees receives | Sara receives | Noor receives | Sum | |
|---|---|---|---|---|
| Mees generates: | -11 | 50 | 4 | 43 |
| Sara generates: | -12 | 17 | 34 | 39 |
| Noor generates: | -19 | -38 | 64 | 45 |
They sum their shares:
| Mees | -4 |
| Sara | 29 |
| Noor | 102 |
They add their sums together: -4 + 29 + 102 = 127 In this way, they have aggregated their data without sharing their individual data with anyone else.
TODO: Exercise with secret sharing where data is leaked.
Differential privacy
As mentioned before, aggregation of data will not always prevent leaks of sensitive information. Consider the example of Mees, Sara and Noor. We know their total weight is 127 kg. If Sara and Noor get together and subtract their weights off of the total, they will be able to infer how much Mees weighs.
An aggregation is differentially private when someone cannot infer whether a particular individual was used in the computation. A way to make a result more differentially private is to replace a selection of inputs with random noise. A single individual will then always be able to deny that their data has contributed to the final result. An individual has plausible deniability with regards to whether it was part of the dataset.
Blocks upon blocks
The previously mentioned techniques are not used in isolation, but are usually stacked on top of eachother to mitigate the privacy risks that are relevant within a certain usecase. Typically, the process begins by anonymizing or pseudonymizing the data. With vantage6, the data is then placed in a federated setting. You can use the existing algorithms available for vantage6, which often incorporate various privacy-enhancing techniques.
Data partitioning
Data sharing challenges come in many different shapes and sizes, but in the end, the goal of the researchers is often to analyze data as if it were available in one big table in one place. There are 2 main ways in which the dataset can be separated over different sources: horizontal and vertical partioning. In horizontal partitioning, this giant table has been snipped in pieces by making horizontal cuts. The result is that information of an individual record will stay in one place, but the records themselves have been scattered around in different locations.
In vertical partitioning, the cuts have been made vertically. Columns have now been divided over different locations. This type of partitioning is usually more challenging because often a way needs to be found to link identities across datasources. Vertical partitioning requires different types of privacy enhancing algorithms than horizontal partitioning.
In reality, data can be horizontally and vertically partitioned at the same time. It might be necessary to combine multiple techniques in order to overcome your problems.
Technology doesn’t solve everything
You have now learned about various technologies for analyzing data while preserving privacy of individuals. However, it should be emphasized that these technologies do not solve all your data sharing problems. Rather, they are only a small piece of the puzzle. In research projects involving privacy enhancing technologies, a lot of work goes into complying with regulations and building trust.
Since these projects have a risk of affecting the privacy of individuals, a Data Protection Impact Assessment (DPIA) is usually required. This is a process that will help identify and minimize privacy risks of a project and is required by GDPR.
Apart from procedures required by GDPR there might be other regulations in place enforced by the owners of the data (e.g. hospitals). The specific situation of a project can affect the way in which the data is allowed to be processed. Some privacy enhancing technologies might be allowed in one project but prohibited in another. It is always important to stay transparent about privacy risks of the technologies you intend to use.
